Innovision EXII Elin-T5

Description

INNOVISION EXII has realized the safe, easy, and fast acquisition of clear radiographic images at low levels of radiation dose. Its refined total design package for real-time diagnosis can be translated into an ideal working condition. This radiography system allows advanced applications to be performed easily and quickly, greatly optimising the workflow. The new generation ceiling-suspended digital X-ray covers the complete spectrum of clear radiographic imaging.

Quick and Easy Preparation

• Soft handling on the ceiling-suspended X-ray tube
• End study Button: automatically rises the tube support and lowers the X-ray table for the patient.
• Beta rotation: comfortable tube rotation with motorized 5-axes movement
• Call buttons: Once the call button is pressed on the wall bucky stand or table, each of them moves to its position in accordance with the detector’s centre.
• X-Ray tube support linked with a bucky stand and table: The focal spot of the X-ray tube unit can be moved up and down in conjunction with the vertical movement of the bucky stand and table. The longitudinal travel of the detector can be easily synchronized. The synchronization between the X-ray field and the detector enables fast positioning for complex exams like oblique radiography.

Automatic Positioning

Auto positioning is a more highly advanced type of automation. It includes the syncing you get from auto-tracking but also moves both the x-ray tube head and the bucky into position based on pre-programmed positions from the systems console. The intent of auto-positioning is to increase workflow by allowing the user to input their x-ray studies for the day in advance so that, at the push of a button, the X-ray system can move between studies and be in position before the patient even

Advanced Imaging

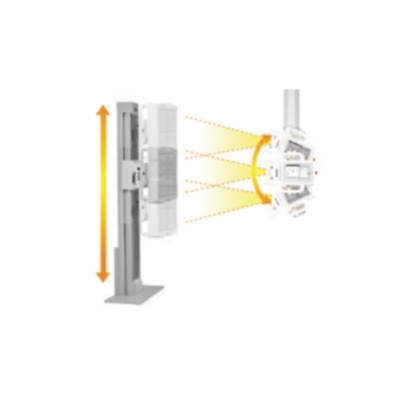

Auto Stitching
The INNOVISION X-ray System makes auto-stitching images very easy. The wall bucky stands as well as the table examination allow stitching. It makes long bone and full spine imaging examinations fast and very convenient. Orthopaedic X-ray diagnosis will benefit from this innovative application software in areas such as the radiographic assessment of scoliosis. Potential applications include, for example, accurate measurement of spine angles and distances between anatomic entities, assessment of the evolution of therapy over time, and identification of orthopaedic surgery indications.
Bucky Tilt
Equipped with a tilting FPD bucky unit, which accommodates a wide range of x-ray application positionins to meet all patient ranges and studies. Combined with the ceiling-type X-ray tube support, the collimator self-adjusts according to the SID. Compactly designed for the easy examination of a seated patient.
